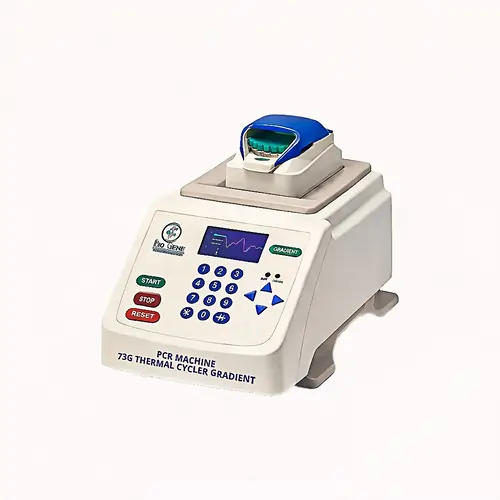

PCR Machine 73G Thermal Cycler Gradient Manufacturer

Polymerase chain Reaction is widely used in molecular biology. As PCR progresses the DNA thus generated is self used as template for replication. with PCR it is possible to amplify a single or few copies of a specific DNA fragment across several order of magnitude, generating millins copies of the DNA fragments.

BIO GENE PCR optimizes polymerase reactions with steep accuracy with gradient and column uniformity less than 0.3 deg C and temperature from 30 to 99.9 deg C.

BIO GENE Laboratory PCR are capable to increase and decrease temperature from 0.1 deg C to 10 deg C coupled with time cycle of 1 to 60sec.

The bottle neck of Auto Restart is taken care and the old temperature forever 4 deg C makes it unique when comparing with other PCRs.

Microprocessor Programmable controls
Temperature: 0 to 99.9ºC.
Door Lock :- lockable
Blower speed : Uniform enable disable
Alarm : High, low
Process : Start . End
Auto : Temperature & time cycle
EN: 60601 : 1
EMD : 93/42/EEC
EN 61000-6-1 : 2001
EN 61000-6-3 : 2001
Electromagnetic Compatibility Directive (89)/336/EEC)

Bio Gene Gradient Pcr Machine has touch screen display with Auto ramping and and heated lid to facilitated the polymerase change reaction with in the temperature rage for 45 to 110C. the dedicated software for PCr applications enables easy use of Bio Gene Pcr.

Large Blue LCD Screen with slim tube and Pcr block of two different capacities also helps in Pcr function.

Bio Gene Usage pal tire based temperature control for fast ramping the lid is lockable vile in process non skid legs and the bottom helps in long duration the actions.

Block Capacity	0.2mlx25wells + 48mlx16wells
Block Temperature Range	0°C ~ 99.9°C
Block Heating Rate	3°C/s
Block Cooling Rate	2°C/s
Block Uniformity	≤ ± 0.3°C
Block Accuracy	≤ ± 0.3°C
Mode of Temperature Control	Sim-Tube & Block Mode
Ramping Rate Adjustable	0.1°C ~ 3°C
LCD	Large-size Blue LCD
Max. No. of storable programs	125 Typical Programs
Max. No. Of Cycle	99
File Named	Yes
Temp. Increment/Decrement	0.1 ~ 10°C
Time Increment/Decrement	1 ~ 60s
Auto Restart	Yes
Hold at 4°C Forever
Auto Pause	Yes
Running Time Display	Yes
Hot Cover Temperature	105°C
Height of Cover Seamless	Adjustable
Hot Cover Auto Shut-Off	Yes
Dimension （LxWxH)	267x220x253mm
Net Weight	6.8kg
Wide Power Supply Range	110V±10%, 220V±25%, 50/60Hz

GRADIENT SPECIFICATION

Gradient Accuracy	≤ ± 0.3°C
Column Uniformity	≤ ± 0.3°C
Temp.Range for Gradient	No 30°C -99.9°C
Temp. Differential Range	No 1°C -30°C
Wide Power Supple Range	170~270V，50/60HZ
